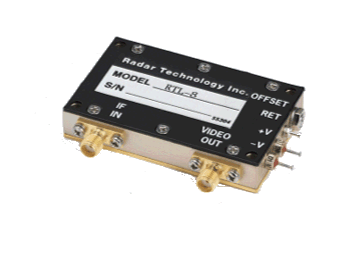

RTL-8 Series Logarithmic Hybrid Amplifiers |
|
Description
RTI has developed a series of hybrid log amplifiers that are 30% smaller than our RTL-4 Series without sacrificing the electrical performance characteristics found in the RTL-4 series log amplifiers.
Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.
Features
- 80dB Dynamic Range
- ± 1 dB Linearity
- DC Coupled Video
- Built-in Voltage Regulation
- Excellent Pulse Response
| General Specifications | |
|---|---|
| Linearity | ±1 dB (add ±0.5 dB over Temperature) (-30°C to +71°C) |
| Sensitivity | 25mV/dB (typ) |
| Source Impedance | 50 Ohms |
| Video Load Input | 93 Ohms |
| Power Requirements | ± 15 VDC |
| Connectors | SMA |
| Optional Specifications | |
|---|---|
| Limited IF Output | 0 dBm (add suffix B) |
| Power Supplies | ±12V DC (add suffix C) |
| Matched Set | 2,3 units/set (add suffix M) |
| Model | Center Frequency(MHz) | Bandwidth(MHz) | Rise Time(uS) | Dynamic Range(dB) | Input Power(dBm) |
|---|---|---|---|---|---|
| RTL-8-1003 | 10 | 3 | 0.5 | 80 | -80 to 0 |
| RTL-8-3002 | 30 | 2 | 0.5 | 80 | -80 to 0 |
| RTL-8-3004 | 30 | 4 | 0.25 | 80 | -80 to 0 |
| RTL-8-3010 | 30 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-8-4510 | 45 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-8-6010 | 60 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-8-6020 | 60 | 20 | 0.05 | 80 | -80 to 0 |
| RTL-8-7010 | 70 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-8-7020 | 70 | 20 | 0.05 | 80 | -80 to 0 |
| RTL-8-12020 | 120 | 20 | 0.05 | 70 | -70 to 0 |
| RTL-8-12040 | 120 | 40 | 0.03 | 70 | -70 to 0 |
| RTL-8-16020 | 160 | 20 | 0.05 | 70 | -70 to 0 |
| RTL-8-16030 | 160 | 30 | 0.04 | 70 | -70 to 0 |
| RTL-8-16040 | 160 | 40 | 0.03 | 70 | -70 to 0 |
