Description

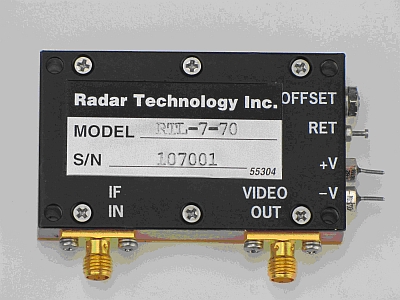

RTI has developed a series of low cost and easily customized log amplifiers, available in frequency range from DC to 3 GHz.
Design Note: Radar Technology can customize any of our products to meet your individual system requirements.
RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.
| General Specification |
| Slope |
25 mV/dB (typical) |
| Source Impedance |
50 Ohms |
| Video Load Impedance |
93 Ohms |
| Power Requirements |
±15 VDC |
| Connectors |
SMA |
| Optional Specifications |
| Customized video load, slope |
| ±12 VDC power supplies |
| Single power supply |
| Model |
Frequency (MHz) |
Rise Time (nS) |
Linearity at 25º C (dB) |
Input Power (dBm) |
| RTL-7-10 |
10 |
200 |
1 |
-70 to +10 |
| RTL-7-30 |
30 |
100 |
1 |
-70 to +10 |
| RTL-7-45 |
45 |
100 |
1 |
-70 to +10 |
| RTL-7-60 |
60 |
100 |
1 |
-70 to +10 |
| RTL-7-70 |
70 |
100 |
1 |
-70 to +10 |
| RTL-7-120 |
120 |
100 |
1 |
-70 to +10 |
| RTL-7-160 |
160 |
100 |
1 |
-70 to +10 |
| RTL-7-200 |
200 |
100 |
1 |
-70 to +10 |
| RTL-7-300 |
300 |
100 |
1 |
-70 to +10 |
| RTL-7-100-2500 |
100-2500 |
40 |
1.5 |
-65 to 0 |
