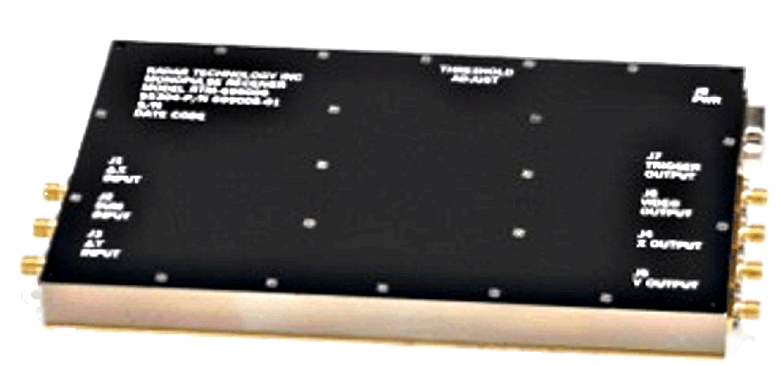

RTM Series Monopulse Receiver |
|
Description
The RTM Series of Monopulse IF Processors can be supplied for
either amplitude or phase sensing antenna systems. These subsystems employ
the S + j D technique to convert the I.F input signals toa video output with a
transfer characteristic: eo = K cos ((tan-1 D/S ) -90° ).
Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.
Features
- Rugged Design
- Small Footprint
- 8.0 x 4.75 x 0.75
- Optional Log Video Output
| General Specifications | |
|---|---|
| Output Voltage | ±2.5VDC (nom.) |
| Source Impedance | 50 Ohms |
| Video Load Impedance | 93 Ohms |
| Power Requirements | ± 15VDC |
| Connectors | SMA |
| Optional Specifications | |
|---|---|
| Power Supplies | ±12V DC (add suffix C) |
| Boresight Null | 40dB (min) (may affect angular accuracy) |
| Model | Center Frequency (MHz) | Bandwidth (MHz) | Rise Time (nS) | Input Signal Level Range (dBm) | Angular Accuracy (Deg.) |
|---|---|---|---|---|---|
| RTM-3010 | 30 | 10 | 70 | -60 to 0 | ±5 |
| RTM-6020 | 60 | 20 | 70 | -60 to 0 | ±5 |
| RTM-7020 | 70 | 20 | 70 | -60 to 0 | ±5 |
| RTM-16020 | 160 | 20 | 70 | -50 to 0 | ±5 |
| RTM-35020 | 350 | 20 | 70 | -50 to 0 | ±5 |
