Automatic frequency control RTDAFC |
|
Description

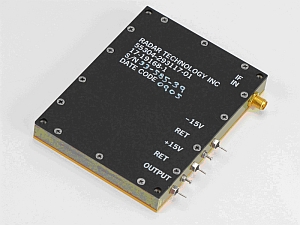

RTDAFC Amplifier/Discriminator accept pulsed signals and provide a DC output voltage which is a monotonic function of the frequency error.
Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.
Features
- 30 MHz to 160 MHz Frequency Range
- Stable output
| General Specifications | |
|---|---|
| Input pulse repetition | 100 Hz to 10 KHz |
| Source Impedance | 50 Ohms |
| Temperature Range | -30°C to +71°C |
| Load Impedance | 1 KOhms |
| Power Requirements | ± 15 VDC |
| Connectors | SMA |
| Optional Specifications | |
|---|---|
| Power Supplies | ±12V DC (add suffix C) |
| Negative transfer slope | add suffix N |
| Model | Center Frequency (MHz) | Peak to Peak Bandwidth (MHz) | Pulse Width (nS) | Input Level (dBm) |
|---|---|---|---|---|
| RTDAFC-30 | 30 | 20 | 300 | -10 to 0 |
| RTDAFC-60 | 60 | 40 | 150 | -10 to 0 |
| RTDAFC-160 | 160 | 60 | 100 | -10 to 0 |
